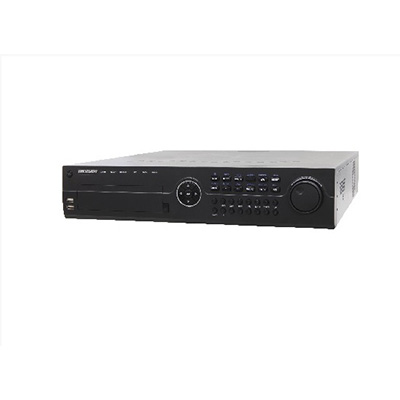

Hikvision DS-8104HFHI-ST 4 Channel 1080P HD-SDI 2U DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-8104HFHI-ST
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: InbuiltMultiplexer
Additional info:
4/8/16-ch HD-SDI video&audio input H.264 & Dual-stream video compression 1920×1080P resolution real-time recording HDMI and VGA output at up to 1920×1080P resolution Dual Gigabit network interfaces HDD quota and group management 8 SATA, 1 eSATA, 3 USB2.0
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-8104HFHI-ST |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 4000 GB storage Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD IP Storage rate (fps): 16 Type of Multiplexer Functions: Simultaneous view, record, playback, backup & remote monitoring |
|
| Physical Specifications |
Dimensions mm: 445 x 470 x 90 Weight kg: 8 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 35 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
