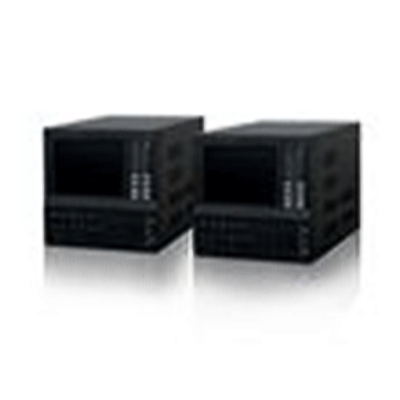

Hikvision DS-8104AHFI-ST ATM/POS DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-8104AHFI-ST
- Channels: 4 channels
- Recording Mode: Real time recording
- Inbuilt Multiplexer: InbuiltMultiplexer
Additional info:
H.264 Video Compression Up to 4CIF Resolution Real-time Recording Dual Stream 4 SATA HDD support HDD Group Management
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-8104AHFI-ST |
|
Channels: 4 channels Recording Mode: Real time recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 9 in, 4 out Storage Capacity GB: 2000 GB storage Image per second (IPS): 25 fps / 30 fps fps storage rate Compression Type: H.264 Resolution: 1024 × 768 resolution External Storage: USB Audio Recording and Properties: OggVorbis |
|
| Physical Specifications |
Dimensions mm: 180 x 180 x 280 Weight kg: 5 |
| Electrical Specifications |
Voltage: 100 - 240 V AC Power Consumption: 40 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
