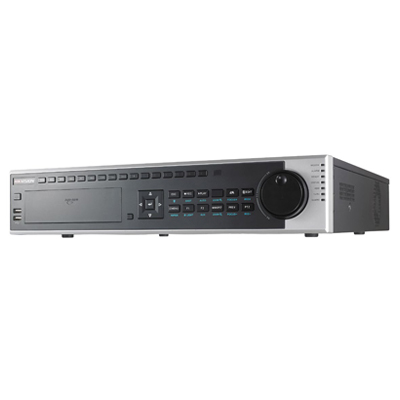

Hikvision DS-8016HFI-ST 16-channel hybrid digital video recorder
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-8016HFI-ST
- Channels: 16 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Hybrid IP inputs: 32
Additional info:
H.264 video compression Third-party network cameras supported Up to 5 Megapixels resolution recording HDMI and VGA output at up to 1920×1080P resolution HDD quota and group management
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-8016HFI-ST |
|
Channels: 16 channels Recording Mode: Real Time / Timelapse / Event recording Hybrid IP inputs: 32 Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 4096 GB storage Compression Type: H.264 Resolution: 1920 × 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Audio Recording and Properties: 2.0 Vp-p Recording System: HDD Type of Multiplexer Functions: Recording, Playback, Viewing IP Storage rate (fps): 30 IP Ready: Yes |
|
| Physical Specifications |
Dimensions mm: 445 × 470 × 90 Weight kg: <8 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: < 45 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
