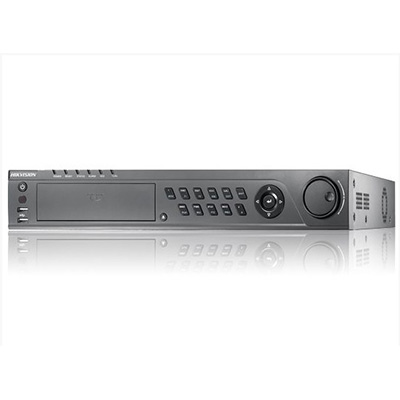

Hikvision DS-7316HWI-SH 16 channel 960H Standalone DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7316HWI-SH
- Channels: 16 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: InbuiltMultiplexer
Additional info:
H.264 video compression 4/8/16/24/32-ch Video Input WD1 resolution real time recording HDMI/VGA output at 1920×1080P resolution Gigabit network interface Up to 16-ch synchronous playback
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7316HWI-SH |
|
Channels: 16 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 4000 GB storage Image per second (IPS): 30 fps fps storage rate Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Type of Multiplexer Functions: Simultaneous view, record, playback, backup & remote monitoring IP Storage rate (fps): 30 IP Ready: IP |
|
| Physical Specifications |
Dimensions mm: 445 x 390 x 70 Weight kg: 5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 35 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
