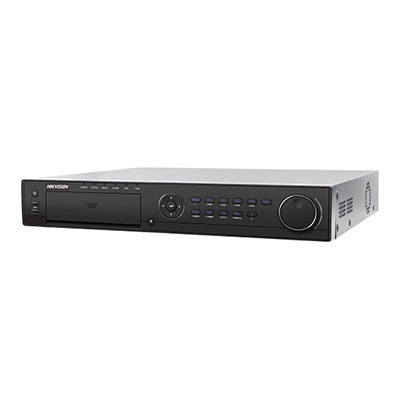

Hikvision DS-7308HFHI-SL HD-SDI DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7308HFHI-SL
- Series: 7300 Series
- Channels: 8 channels
- Recording Mode: Real time recording
Additional info:
H.264 video compression Special for HD-SDI cameras 1280×720P resolution real-time recording HDMI and VGA output at up to 1920×1080P resolution Gigabit network interfaces HDD quota and group management
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7308HFHI-SL |
| Series | 7300 Series |
|
Channels: 8 channels Recording Mode: Real time recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 4000 GB storage Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: 3 × USB 2.0 Audio Recording and Properties: G.711u Recording System: HDD Type of Multiplexer Functions: Playback |
|
| Physical Specifications |
Dimensions mm: 440 x 390 x 70 Weight kg: ? 5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: ? 40 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
