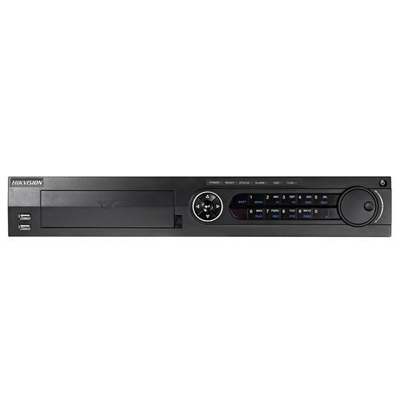

Hikvision DS-7304HQHI-F4/N Turbo HD DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7304HQHI-F4/N
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: 1
Additional info:
H.264 ,H.264+& Dual-stream video compression Support HD-TVI, IPC,AHD and analog cameras with adaptive access Support Cloud storage(One Drive, Google Drive or Drop Box) Up to 3 MP resolution for recording of the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution Long transmission distance over coax cable playback at up to 256X speed Support POS functions
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7304HQHI-F4/N |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: 1 Storage Capacity GB: 6000 GB storage Image per second (IPS): 25 / 30 fps fps storage rate Compression Type: H.264,H.264+ Resolution: 1080p resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Audio Recording and Properties: G.711u, 4-ch, RCA (2.0 Vp-p, 1 KOhm) |
|
| Physical Specifications |
Dimensions mm: 445 x 390 x 70 Weight kg: < 5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: < 30 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
