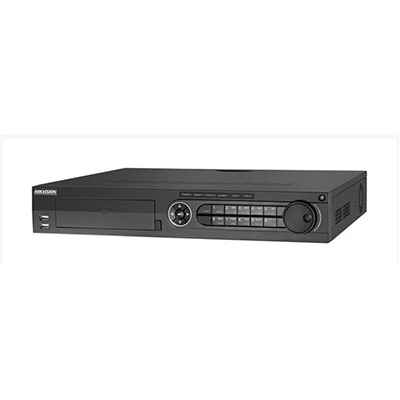

Hikvision DS-7304HGHI-SH Turbo HD DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7304HGHI-SH
- Series: DS-7304/08/16HGHI-SH Series
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
Connectable to TVI and analog cameras Connectable to the Coaxitron camera/dome with long transmission distance Connectable to network cameras New GUI and supports starting record with one key Redundant recording, holiday recording schedule configuration Support up to 16-ch synchronous playback at 1080P resolution; and reverse playback for multi-channel
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7304HGHI-SH |
| Series | DS-7304/08/16HGHI-SH Series |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 6000 GB storage Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC Recording System: HDD Type of Multiplexer Functions: Simultaneous view, record, playback, backup & remote monitoring |
|
| Physical Specifications |
Dimensions mm: 445 x 390 x 70 Weight kg: 5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 30 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
