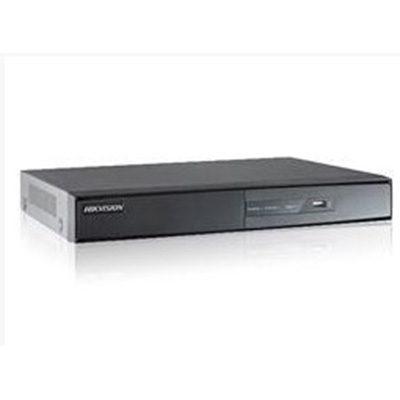

Hikvision DS-7224HI-SH economic WD1 DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7224HI-SH
- Channels: 24 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: InbuiltMultiplexer
Additional info:
H.264 video compression 2CIF resolution real-time recording Up to WD1(960*576) resolution recording HDMI and VGA output at up to 1920×1080P resolution Dual-stream • Up to 16-ch synchronous playback NTP, SMTP, NFS, UPnP and iSCSI protocols
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7224HI-SH |
|
Channels: 24 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 4 in, 1 out Storage Capacity GB: 4000 GB storage Image per second (IPS): 30 fps fps storage rate Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Type of Multiplexer Functions: Simultaneous view, record, playback, backup & remote monitoring IP Storage rate (fps): 30 |
|
| Physical Specifications |
Dimensions mm: 445 x 290 x 45 Weight kg: 4 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 25 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
