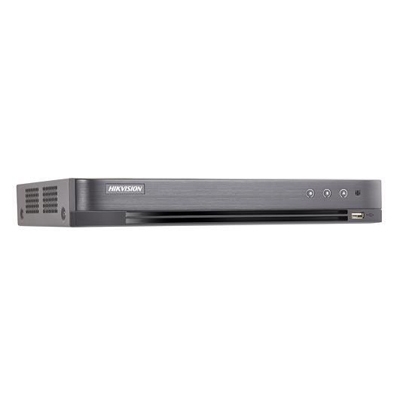

Hikvision DS-7204HQHI-K1/P Turbo HD DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-7204HQHI-K1/P
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: 1
Additional info:
Self-adaptive normal camera and Hikvision PoC camera connection H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analogue cameras Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Connectable to H.265+/H.265/H.264+/H.264 IP cameras Up to 3 MP resolution for recording Automatic power supply management for PoC camera to guarantee safety Long distance transmission over UTP and coaxial cable
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-7204HQHI-K1/P |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: 1 Multiplexer Type: Half-duplex Storage Capacity GB: 6000 GB storage Image per second (IPS): 25 / 30 fps fps storage rate Compression Type: H.265+/H.265/H.264+/H.264 Resolution: 1080p resolution Signal Mode: PAL / NTSC External Storage: USB Audio Recording and Properties: G.711u, RCA (2.0 Vp-p, 1 kOhm) Recording System: HDD |
|
| Physical Specifications |
Dimensions mm: 315 x 242 x 45 Weight kg: < 1.16 |
| Electrical Specifications |
Voltage: 48 V DC Power Consumption: < 40W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
