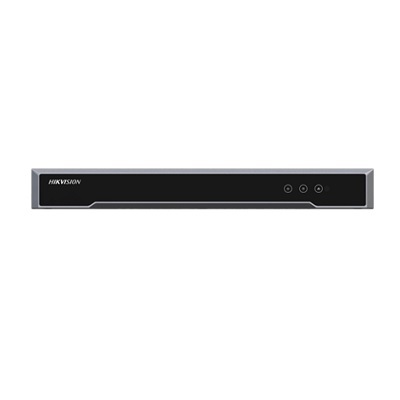

Hikvision DS-6704/6708/6716HUHI-K 4 channel DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-6704/6708/6716HUHI-K
- Series: DS-6700HUHI-K SERIES
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 8 MP HDTVI video input and live view Long distance transmission over UTP and coaxial cable H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Full channel recording at up to 8 MP resolution
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-6704/6708/6716HUHI-K |
| Series | DS-6700HUHI-K SERIES |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Hybrid IP inputs: 4 Inbuilt Multiplexer: 1 Multiplexer Type: triplex Alarm I/O: 4 in, 1 out Storage Capacity GB: 8000 GB storage Image per second (IPS): 12 fps fps storage rate Compression Type: H.265+, H.265, H.264+, H.264 Resolution: 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Audio Recording and Properties: G.711u Type of Multiplexer Functions: Simulatneous Live, Recording, Playback, Archive IP Storage rate (fps): 12 ~ 30 fps |
|
| Physical Specifications |
Dimensions mm: 315 x 242 x 45 Weight kg: 1.16 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 10 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
