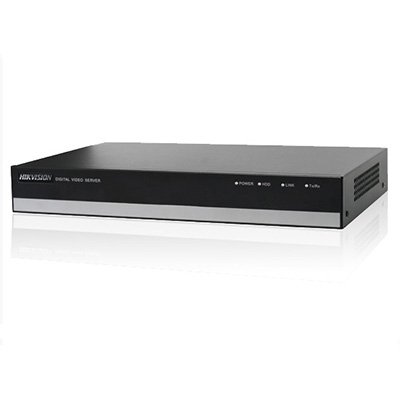

Hikvision DS-6604HFI-SATA 4 channel video encoder
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-6604HFI-SATA
- Video Inputs: 4 channels
- Data Input: DataInput
- Audio Input: Audio Input
Additional info:
H.264 video compression 4CIF resolution real-time recording Dual-stream 1 SATA interface Multiple PTZ protocols SADP(IP Finder), UDP, RTP and RTSP protocols
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-6604HFI-SATA |
|
Video Inputs: 4 channels Data Input: DataInput Audio Input: Audio Input Compression Type: H.264 Network Protocols: SADP(IP Finder), UDP, RTP and RTSP Interface: 1RJ-45 10 M / 100 Mbps self-adaptive UTP ethernet interface Resolution TVL: 4CIF Image per second (IPS): 30 fps |
|
| Physical Specifications |
Dimensions mm: 315 x 201 x 45 Weight g: 2,000 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 8 W |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
