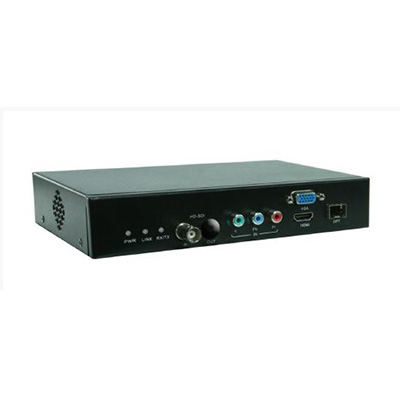

Hikvision DS-6601HFHI HD audio and video encoder
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-6601HFHI
- Audio Input: Audio Input
- Alarm Input: Alarm Input
- Compression Type: H.264
Additional info:
Connectable to the third-party network cameras like like ACTI, Support H.264 encoding standard at PS and RTP customised encapsulation formats, of which RTP stream is used for transmission via network and PS stream for recording HD-SDI/FC/HDMI/VGA/YPbPr video input Encoding video at up to 1080P resolution Dual-stream encoding Either video & audio streams encoding or video-only encoding; audio and video synchronisation during composite streams encoding Up to 8 recording periods can be configured for each day, with different recording type selectable for each recording period One 10 M/100 M/1000 Mbps Ethernet interface Support TCP/IP, UDP, RTP, RTSP, PSIA, SNMP and UPNP network protocols
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-6601HFHI |
|
Audio Input: Audio Input Alarm Input: Alarm Input Compression Type: H.264 Network Protocols: TCP/IP, UDP, IPv4, IPv6; HTTP, RTP, RTSP, NFS, ISCSI, DHCP, NTP, SMTP, SNMPv1, SNMPv2c, SNMPv3, UPNP, SADP, PPPoE, DNS, FTP; IP Server, Dyndns, PeanutHull, HiDDNS, NO-IP; PSIA, HIKCGI, ONVIF. Interface: 1 10 M / 100 M /1000 Mbps Ethernet interface Resolution TVL: 1920 x 1080 Image per second (IPS): 60 fps |
|
| System Requirements | System Requirements: Linux |
| Physical Specifications |
Dimensions mm: 200 x 123 x 39 Weight g: 1,500 |
| Electrical Specifications |
Power Consumption: 13 W Voltage: 12 V DC |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
