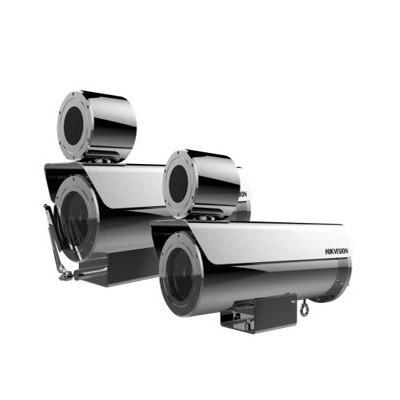

Hikvision DS-2XE6422FWD-IZH(R)S 2 MP Explosion-Proof Network Bullet Camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2XE6422FWD-IZH(R)S
- Series: Explosion Proof
- Chip Inch Size: 1/2 inch
- Colour Type: Colour / Monochrome
Additional info:
Up to 2 MP high resolution 120dB Wide Dynamic Range Lens, 2.8 to 12mm and 8 to 32 mm optional H.265, H.265+, H.264, H.264+ Three video streams 6 behavior analyses, 3 exception detections, 1 statistics and face detection
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2XE6422FWD-IZH(R)S |
| Series | Explosion Proof |
|
Chip Inch Size: 1/2 inch Colour Type: Colour / Monochrome Resolution: 2MP resolution Digital (DSP): 1 Specialist Type: Network Sensitivity Lux: 0 ~ 0.001 Auto Iris: 1 Motion Activated: 1 Focal Length mm: 2.8 ~ 12 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1 ~ 1/100,000 s Y/ C (Video Output): 1Vp-p Composite Output(75Ω/BNC) Compression Type: H.265, H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 100 ~ 200 V AC, PoE Power Consumption: 22.6 W |
| Network Properties |
Image Frame Rate: 25 ~ 60 fps Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port, Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Physical Specifications |
Dimensions mm: 513 x 169 x 308 Weight g: 17,800 |
| Environmental Specifications |
Protection: IP68 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
