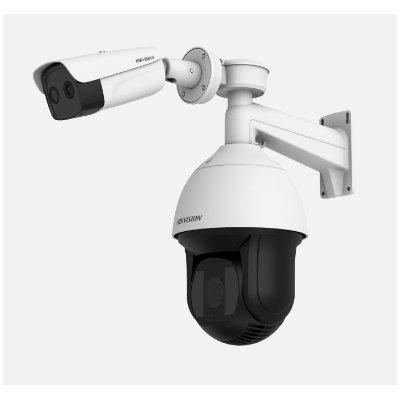

Hikvision DS-2TX3742-15A/P Thermal Smart Linkage Tracking System
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2TX3742-15A/P
- Series: Bullet Series
- Resolution: 384 × 288 (Thermal Module) resolution
- Specialist Type: Thermal
Additional info:
384 × 288 resolution thermal image, high sensitivity sensor, adjustable contrast Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD ≤ 35 mK (@25 °C,F#=1.0) PTZ camera with 4MP image, 42 × optical zoom and 500 m IR supplement Intelligent and persistent analytics working within the linkage system One-touch connection and automatic alignment between the images of bi-spectrum bullet camera and optical PTZ camera
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2TX3742-15A/P |
| Series | Bullet Series |
|
Resolution: 384 × 288 (Thermal Module) resolution Specialist Type: Thermal Sensitivity Lux: Color: 0.0089 lux, B/W: 0.0018 Focal Length mm: 6 mm Mount Type: Wall Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1 s to 30,000 s Zoom: 1 Compression Type: H.265/H.264/MJPEG |
|
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 70 W |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: 1, RJ45 10 M/100 M self-adaptive Ethernet interface ; 1, RS-485 interface Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Physical Specifications |
Weight g: 10,890 Dimensions mm: Φ266.6 x 573.5 x 699.8 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: <90 |
| Additional info |
|
