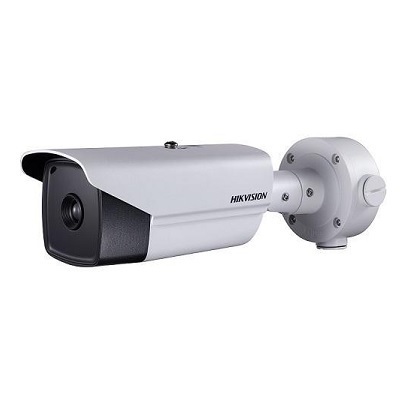

Hikvision DS-2TD2136-7 Thermal Network Bullet Camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2TD2136-7
- Resolution: 384 x 288 resolution
- Digital (DSP): 1
- Specialist Type: Thermal
Additional info:
Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.0) Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit Reliable temperature exception alarm function Advanced fire detection algorithm
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2TD2136-7 |
|
Resolution: 384 x 288 resolution Digital (DSP): 1 Specialist Type: Thermal Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 Focal Length mm: 7 Wide Dynamic Range: 1 Picture Elements HxV: 384 x 288 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Signal Mode: PAL, NTSC Y/ C (Video Output): 1.0V [p-p]/75Ω Compression Type: H.265, H.264, MJPEG, H.265+, H.264+ |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 8 W |
| Network Properties |
Image Frame Rate: 50 fps Interface: 1 RJ45 10M/100M Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Physical Specifications |
Dimensions mm: 314 x 104 x 293 Weight g: 2,000 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac) |
| Additional info |
|
