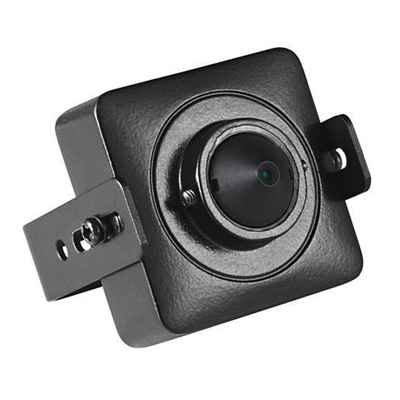

Hikvision DS-2CS54A7P-PH WDR day/night pinhole CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CS54A7P-PH
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 700
Additional info:
Hikvision DS-2CS54A7P-PH is a pinhole CCTV camera with 700TVL horizontal resolution. It features 1/3-inch CCD image sensor, electronic day/night as well as 75dB wide dynamic range.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CS54A7P-PH |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 700 Digital (DSP): Digital Specialist Types: Pinhole Sensitivity lux: 0.006 Focal Length mm: 3.7 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 976 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl Electronic Shutter range: 1/50s ~ 1/100,000s S/ N (Signal/ Noise) Ratio dB: > 62 Signal Mode: PAL Video Output: 1Vp-p Composite Output (75ohms/BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 2 W |
| Physical Specifications |
Dimension mm: 30 x 31 x 21 Weight g: 200 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CS54A7P-PH is a pinhole CCTV camera with 700TVL horizontal resolution. It features 1/3-inch CCD image sensor, electronic day/night as well as 75dB wide dynamic range. |
| Download PDF version | |
