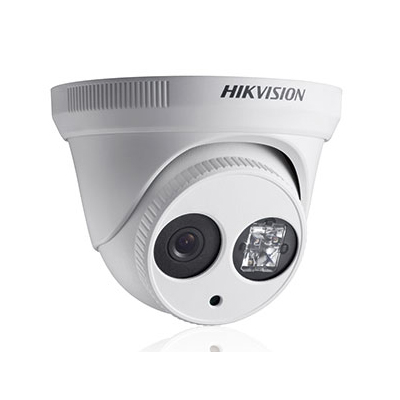

Hikvision DS-2CE56D5T-IT1 turbo HD EXIR turret CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CE56D5T-IT1
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 1920 x 1080
Additional info:
Hikvision DS-2CE56D5T-IT1 is a turbo HD EXIR turret CCTV camera with HD1080P video output. It features 20m IR distance, EXIR technology, Smart IR as well as HDTVI technology. The camera also features OSD menu and 3D-DNR.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CE56D5T-IT1 |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 1920 x 1080 HD: HD Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Motion Activated: MotionActivated Focal Length mm: 3.6 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1920 x 1080 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25(1/30) s ~ 1/50,000 s S/ N (Signal/ Noise) Ratio dB: > 52 Synchronisation: Internal Signal Mode: NTSC, PAL Zoom: Zoom Video Output: 1Vp-p Composite Output(75ohms / BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4 W |
| Physical Specifications |
Dimension mm: 115 x 89 Weight g: 300 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ 140 F) Protection: IP66 Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CE56D5T-IT1 is a turbo HD EXIR turret CCTV camera with HD1080P video output. It features 20m IR distance, EXIR technology, Smart IR as well as HDTVI technology. The camera also features OSD menu and 3D-DNR. |
