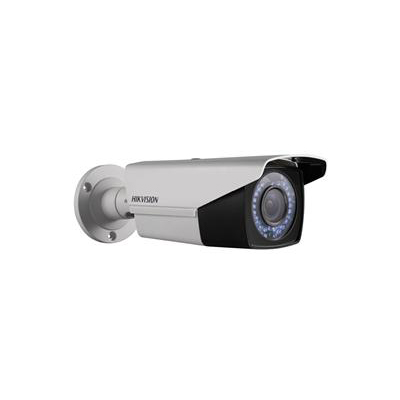

Hikvision TurboHD 1080P motorised vari-focal IR bullet camera
Product Profile
This camera adopts a new generation sensor with high sensitivity and advanced circuit board design technology. It possesses the features of high resolution, low distortion, and low noise, etc., making it extremely suitable for supervisory systems and image processing systems.
The main features are as follows:
- 2 Megapixel high-performance CMOS
- Analogue HD output, up to 1080P resolution
- 2.8 – 12mm motorised vari-focal lens
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- True WDR, up to 120dB
- Up to 40m IR distance
- Built-in heater
- IP66 weatherproof
- UTC function (Pelco C protocol)
Technical Specification
| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CE16D5T-AIR3ZH |
| Series | TurboHD line |
|
Colour Type: True Day / Night Resolution TVL: 2 MP HD: HD Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Focal Length mm: 2.8 ~ 12 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1944 x 1092 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25(1/30) ~ 1/50,000s S/ N (Signal/ Noise) Ratio dB: >62 Synchronisation: Internal Signal Mode: PAL/NTSC Zoom: Zoom Video Output: 1Vp-p Composite Output(75ohm/BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 12 W |
| Physical Specifications |
Dimension mm: 92 × 85 × 270 Weight g: 690 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F) Protection: IP66 Operating Humidity %: 0 ~ 90 |
| Additional info |
|
