Hikvision DS-2CE15F5P(N)-VFIR3 IR bullet CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CE15F5P(N)-VFIR3
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 720
Additional info:

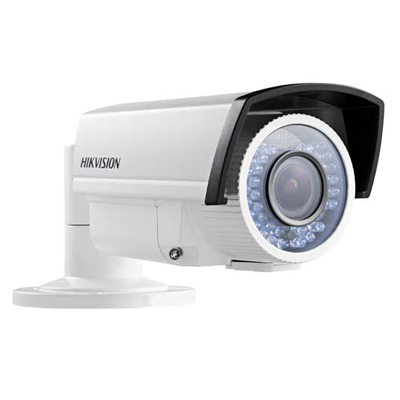

Hikvision DS-2CE15F5P(N)-VFIR3 is a IR bullet CCTV camera with 720TVL horizontal resolution. It features approx 30 to 40m IR distance, IR cut filter with auto switch, 2.8 to 12mm vari-focal lens as well as pan, tilt and rotation angle adjustment.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CE15F5P(N)-VFIR3 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 720 Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Motion Activated: MotionActivated Focal Length mm: 2.8 ~ 12 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1305 x 1049 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25(1/30) s ~ 1/25,000(1/30,000) s S/ N (Signal/ Noise) Ratio dB: > 62 Synchronisation: Internal Signal Mode: NTSC, PAL Zoom: Zoom Video Output: 1Vp-p Composite Output (75ohms/BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5 W |
| Physical Specifications |
Dimension mm: 105 x 87 x 267 Weight g: 1,350 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F) Protection: IP66 Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CE15F5P(N)-VFIR3 is a IR bullet CCTV camera with 720TVL horizontal resolution. It features approx 30 to 40m IR distance, IR cut filter with auto switch, 2.8 to 12mm vari-focal lens as well as pan, tilt and rotation angle adjustment. |
