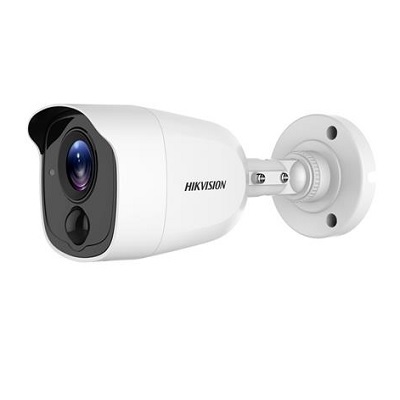

Hikvision DS-2CE11H0T-PIRL 5 MP PIR Bullet Camera

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-2CE11H0T-PIRL
  • Colour Type: True Day / Night
  • Resolution TVL: 5MP
  • Digital (DSP): 1
Additional info:

5 MP high performance CMOS 2560 × 1944 resolution 2.8 mm, 3.6 mm fixed focal lens PIR detection, visual alarm EXIR 2.0, smart IR, up to 20 m IR distance IP67 Up the coax (HIKVISION-C)

Read more
Make Hikvision
Manufacturer Hikvision
Category IP Cameras products
Model code DS-2CE11H0T-PIRL
Colour Type: True Day / Night
Resolution TVL: 5MP
Digital (DSP): 1
Sensitivity lux: 0 ~ 0.01
Focal Length mm: 2.8 ~ 3.6
Wide Dynamic Range: 1
Picture Elements HxV: 2560 × 1944
Back Light Compensation: 1
Auto Gain Control: 1
White Balance: 1
Electronic Shutter range: 1/25 (1/30) ~ 1/50,000 s
Synchronisation: Internal
Signal Mode: PAL, NTSC
Video Output: 1 HD analog output
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4.5 W
Physical Specifications Dimension mm: 68 x 70 x 180
Weight g: 345
Environmental Specifications Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP67
Operating Humidity %: 0 ~ 90
Additional info
  • 5 MP high performance CMOS
  • 2560 × 1944 resolution
  • 2.8 mm, 3.6 mm fixed focal lens
  • PIR detection, visual alarm
  • EXIR 2.0, smart IR, up to 20 m IR distance
  • IP67
  • Up the coax (HIKVISION-C)
