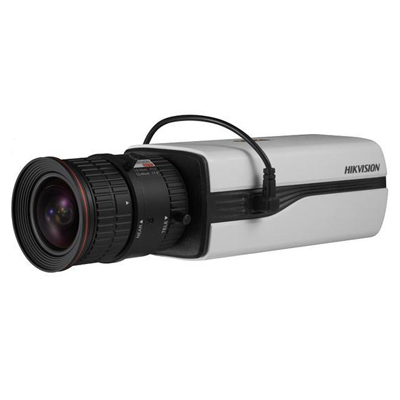

Hikvision DS-2CC12D9T(-A) turbo HD box CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CC12D9T(-A)
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 1920 x 1080
Additional info:
Hikvision DS-2CC12D9T(-A) is a turbo HD box CCTV camera with HD1080P video output. It features OSd menu controlled via UTC, Smart IR, HDTVI technology as well as 3D-DNR and motion detection.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CC12D9T(-A) |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 1920 x 1080 HD: HD Digital (DSP): Digital Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0.001 Lens Mount: C/CS mount Motion Activated: MotionActivated Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1920 x 1080 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25(1/30) s ~ 1/50,000 s S/ N (Signal/ Noise) Ratio dB: > 52 Synchronisation: Internal Signal Mode: NTSC, PAL Zoom: Zoom Video Output: 1Vp-p Composite Output(75ohms/BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 4.5 W |
| Physical Specifications |
Dimension mm: 69 x 57 x 149 Weight g: 400 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60°C (-22 ~ +140 F) Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CC12D9T(-A) is a turbo HD box CCTV camera with HD1080P video output. It features OSd menu controlled via UTC, Smart IR, HDTVI technology as well as 3D-DNR and motion detection. |
