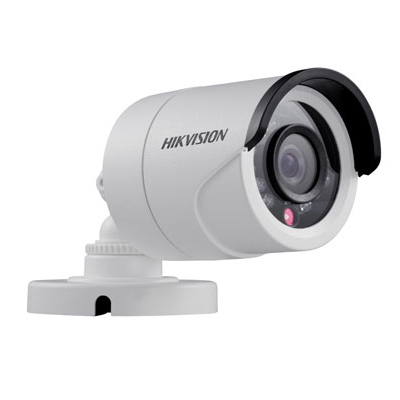

Hikvision DS-2CC12D5S-IR 2MP IR bullet CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CC12D5S-IR
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 2 MP
Additional info:
Hikvision DS-2CC12D5S-IR is a 2MP bullet CCTV camera with full HD1080P video output. It features true day/night, OSD menu as well as privacy masking. It also features up to 20m IR distance.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CC12D5S-IR |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 2 MP HD: HD Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Motion Activated: MotionActivated Focal Length mm: 3.6 Picture Elements HxV: 1920 x 1080 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25 s ~ 1/50,000 s S/ N (Signal/ Noise) Ratio dB: > 52 Synchronisation: Internal Signal Mode: NTSC, PAL Zoom: Zoom Video Output: 1Vp-p Composite Output(75ohms/BNC) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5 W |
| Physical Specifications |
Dimension mm: 70 x 150 Weight g: 360 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Protection: IP66 Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CC12D5S-IR is a 2MP bullet CCTV camera with full HD1080P video output. It features true day/night, OSD menu as well as privacy masking. It also features up to 20m IR distance. |
