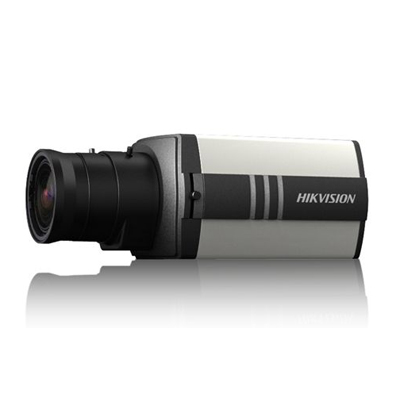

Hikvision DS-2CC11A7P(N)-A(-C) HD day/night box CCTV camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CC11A7P(N)-A(-C)
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 700
Additional info:
Hikvision DS-2CC11A7P(N)-A(-C) is a HD box CCTV camera with 700TVL horizontal resolution. It features OSD menu, 75dB wide dynamic range, 3D-DNR as well as Smart IR and super low illumination.
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CC11A7P(N)-A(-C) |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 700 Digital (DSP): Digital HD: HD Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0.00001 Lens Mount: C/CS mount Motion Activated: MotionActivated Wide Dynamic Range: wideDynamicRange Picture Elements HxV: PAL: 976 x 582; NTSC: 976 x 494 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: PAL: 1/50 s ~ 1/100,000 s; NTSC: 1/60 s ~ 1/100,000 s S/ N (Signal/ Noise) Ratio dB: > 62 Synchronisation: Internal Signal Mode: NTSC, PAL Zoom: Zoom Video Output: 1Vp-p composite output (75 ohms/BNC) |
|
| Electrical Specifications | Power Consumption: 10 W |
| Physical Specifications |
Dimension mm: 69 x 56 x 113 Weight g: 400 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 0 ~ 90 |
| Additional info | Hikvision DS-2CC11A7P(N)-A(-C) is a HD box CCTV camera with 700TVL horizontal resolution. It features OSD menu, 75dB wide dynamic range, 3D-DNR as well as Smart IR and super low illumination. |
