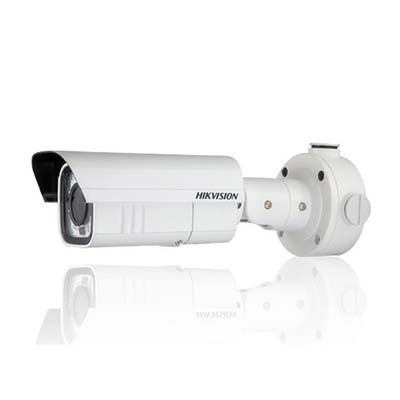

Hikvision DS-2CC11A5P(N)-VFIR 700TVL vari-focal IR bullet camera
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CC11A5P(N)-VFIR
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 700
Additional info:
1/3” Sony CCD 700TVL high resolution Vari-focal lens DNR or 3D DNR Digital wide dynamic range Smart IR IP66 rating
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-2CC11A5P(N)-VFIR |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 700 Digital (DSP): Digital Specialist Types: Pan Tilt Auto Iris: AI Direct Drive: DD Sensitivity lux: 0.001 Lux @ (F1.2, AGC ON), 0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512), 0 Lux with IR 0.0014 Lux @ (F1.4, AGC ON), 0.00014 Lux @ (F1.4, AGC ON, sensitivity × 512), 0 Lux with IR Motion Activated: MotionActivated High Speed: HighSpeed Focal Length mm: 2.8 ~ 12 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: PAL: 976 x 582, NTSC: 976 x 494 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: PAL: 1/50 ~ 1/100,000s, NTSC: 1/60 ~ 1/100,000s S/ N (Signal/ Noise) Ratio dB: > 62 Synchronisation: Internal / Power Signal Mode: PAL, NTSC Video Output: 1Vp-p composite output (75 ?/BNC); Test monitor out [1Vp-p composite output (75 Ohms/BNC), device line |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 9.5 W |
| Physical Specifications |
Dimension mm: 97 x 85 x 315 Weight g: 2100 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Protection: IP66 Operating Humidity %: 0 ~ 90 |
| Additional info |
|
