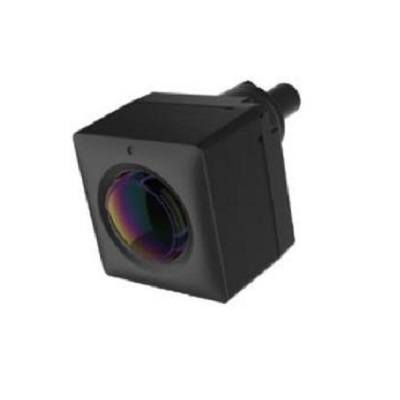

Hikvision AE-VC031P(N) Mobile Fisheye Camera
Technical Specification
Features:
- Make: Hikvision
- Model code: AE-VC031P(N)
- Chip Inch Size ": 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 480
Additional info:
Clear and vivid image 0.1Lux@(F1.4,AGCON), 0 Lux with IR IP68 protection level, high reliability
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | AE-VC031P(N) |
|
Chip Inch Size ": 1/4 inch Colour Type: Colour / Monochrome Resolution TVL: 480 Digital (DSP): 1 Sensitivity lux: 0 ~ 0.1 Motion Activated: 1 High Speed: 1 Focal Length mm: 1.15 Wide Dynamic Range: 1 Picture Elements HxV: 728 x 560 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/25(1/30) ~ 1/50,000s S/ N (Signal/ Noise) Ratio dB: >60 Synchronisation: Internal Signal Mode: PAL, NTSC Video Output: 1Vp-p composite output (75 Ω aviation plug) |
|
| Electrical Specifications |
Voltage: 6 ~ 16 V DC Power Consumption: 0.5 W |
| Physical Specifications |
Dimension mm: 33 x 33 Weight g: 50 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +70 C (-22 ~ +158 F) Protection: IP68 Operating Humidity %: 0 ~ 90 |
| Additional info |
|
