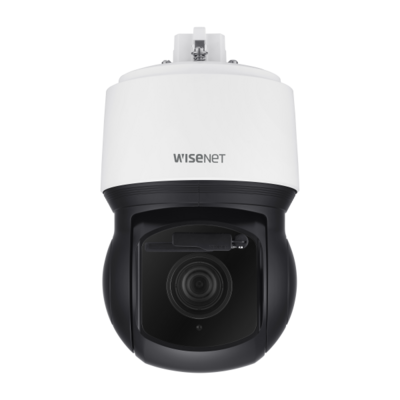

Hanwha Techwin XNP-8300RW 6MP 30x IR Wiper PTZ Camera
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: XNP-8300RW
- Series: WISENET X SERIES
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
Additional info:
6MP resolution @ 30fps IR viewable length : 200m (656ft) 30X optical zoom lens (5mm ~150mm) (57.42º ~ 2.19º) -20˚ tilt look-up capability to see above the horizon H.265, H.264, MJPEG triple codec support Multiple streaming, WiseStream II support Day & Night (ICR), extreme WDR DIS with Built-in Gyro sensor Azimuth display (Cardinal & intermediate directions) AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics Dual Memory slots (Maximum 512GB x 2) IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) HPoE (IEEE802.3bt, Class6, Type3, Injector included) UL CAP Cybersecurity certified Optional Network I/O box for alarm & audio I/O(Coming Q1 2021)
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | IP Cameras products |
| Model code | XNP-8300RW |
| Series | WISENET X SERIES |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 6 MP resolution Specialist Type: PTZ Sensitivity Lux: 0.1 Motion Activated: 1 Focal Length mm: 5 ~ 150 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 2~1/12,000sec Zoom: 1 Compression Type: H.265/H.264: Main/Baseline/High, MJPEG |
|
| Electrical Specifications |
Voltage: HPoE Power Consumption: Typical 20W, Max 42W |
| Network Properties |
Image Frame Rate: 30 fps Interface: Metal shielded RJ-45(10/100BASE-T) Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP |
| Physical Specifications |
Dimensions mm: Ø184.9 x 318.8 Weight g: 5400 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <95 |
| Additional info |
|
