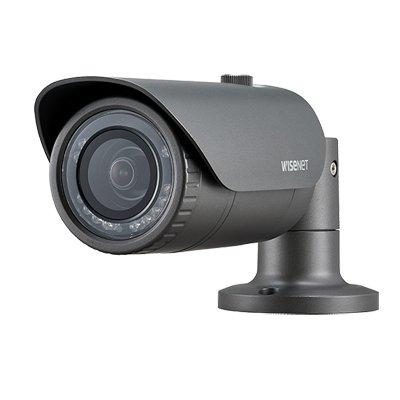

Hanwha Techwin HCO-7030RA 4MP Wisenet HD+ Bullet Camera
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: HCO-7030RA
- Series: WISENET HD+ SERIES
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
QHD (2560 x 1440, 30fps) resolution Day & Night (ICR), DWDR, Motion detection IR Viewable Length 30m Transmission distance max.500m Easy installation (Plug & play), IP66, IK10
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | IP Cameras products |
| Model code | HCO-7030RA |
| Series | WISENET HD+ SERIES |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 4MP HD: 1 Digital (DSP): 1 Auto Iris: 1 Direct Drive: 1 Sensitivity lux: 0 ~ 0.27 Motion Activated: 1 Focal Length mm: 6.0mm Wide Dynamic Range: 1 Picture Elements HxV: 2560 x 1440 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/30 ~ 1/12,000s Video Output: BNC(AHD), additional CVBS for installation(2Pin connector type) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5 W |
| Physical Specifications |
Dimension mm: Ø70.0 x 246 Weight g: 670 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F) Protection: IP66, IK10 Operating Humidity %: < 90 |
| Additional info |
|
