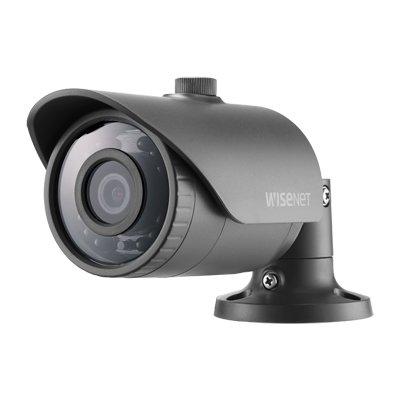

Hanwha Techwin HCO-6020R 2MP Analog HD IR Bullet
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: HCO-6020R
- Colour Type: Colour / Monochrome
- Resolution TVL: 2 MP
- HD: 1
Additional info:
Full HD resolution [email protected](Color), 0Lux(B/W : IR LED on) 4.0mm lens Day & Night(ICR), WDR(120dB) SSNRⅣ, Motion detection IR viewable length : 98 feet, IP66, 12CDC Transmission distance Max.500m Easy installation (Plug & play),Coaxial control Multi-protocol compatible with AHD, TVI, CVI, CVBS
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | IP Cameras products |
| Model code | HCO-6020R |
|
Colour Type: Colour / Monochrome Resolution TVL: 2 MP HD: 1 Sensitivity lux: 0.17 Motion Activated: 1 Focal Length mm: 4 mm Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1 ~ 1/12,000sec |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5.4W |
| Physical Specifications |
Dimension mm: Ø58.6 x 165.2 Weight g: 279g |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F) Protection: IP66 |
| Additional info |
|
| Download PDF version | |
