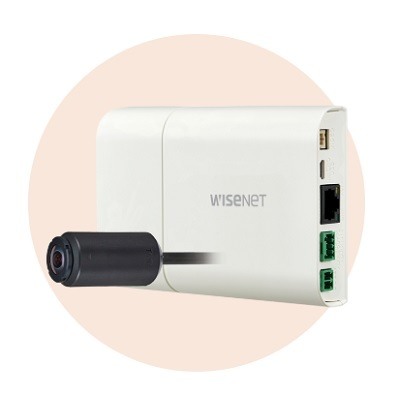

Hanwha Techwin America XNB-H6240A 2MP Network ATM Camera Kit (1.5m cable)
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: XNB-H6240A
- Series: WISENET X SERIES
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Max. 2Megapixel (1920 x 1080) resolution H.265, H.264, MJPEG codec support, Multiple streaming Max. 60fps@2MP (H.265 / H.264) WDR (120dB) Built-in Analytics SD / SDHC / SDXC memory slot (Max. 256GB)
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | IP Cameras products |
| Model code | XNB-H6240A |
| Series | WISENET X SERIES |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 2MP resolution Digital (DSP): 1 Specialist Type: Megapixel Sensitivity Lux: 0.45 Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 High Speed: 1 Focal Length mm: 2.4 Wide Dynamic Range: 1 Picture Elements HxV: 1945 x 1109 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 2 ~ 1/12,000s Y/ C (Video Output): CVBS : 1.0 Vp-p / 75Ω composite Compression Type: H.265, H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 6 W |
| Network Properties |
Image Frame Rate: 30 ~ 60 fps Interface: RJ-45 (10/100BASE-T) Network Protocols: TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Physical Specifications |
Weight g: 245 Dimensions mm: 131 x 28 x 86 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 0 ~ 90 |
| System Requirements |
Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome 61, MS Edge 40, Mozilla Firefox 56 (Window 64bit only) Apple Safari 10 (Mac OS X only) |
| Additional info |
|
| Download PDF version | |
