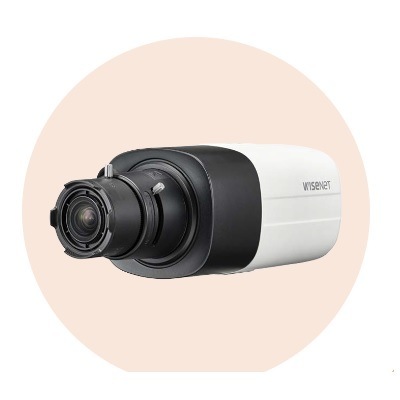

Hanwha Techwin America HCB-6001 2MP Analogue HD Box
Technical Specification
Features:
- Make: Hanwha Vision
- Model code: HCB-6001
- Series: WISENET HD+ SERIES
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Full HD(1920 x 1080, 30fps) resolution [email protected](Color), [email protected](B/W) Day & Night(ICR), WDR(120dB) SSNRⅣ, Motion detection Transmission distance max.500m Easy installation (Plug & play), Dual power, RS-485
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Category | IP Cameras products |
| Model code | HCB-6001 |
| Series | WISENET HD+ SERIES |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 1080p HD: 1 Digital (DSP): 1 Auto Iris: 1 Direct Drive: 1 Sensitivity lux: 0.009 ~ 0.09 Lens Mount: C/CS mount Wide Dynamic Range: 1 Picture Elements HxV: 1945 x 1109 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1~ 1/12,000s S/ N (Signal/ Noise) Ratio dB: 52 Video Output: BNC(AHD / TVI / CVI / CVBS Selectable) |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 6 W |
| Physical Specifications |
Dimension mm: 73 x 67 x 124 Weight g: 287 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
