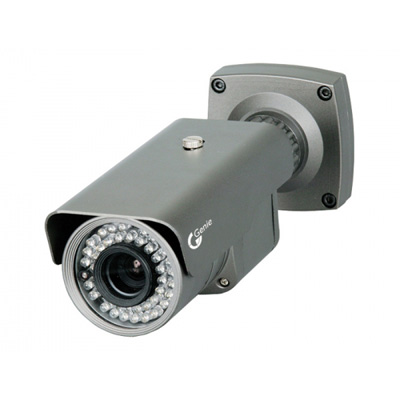

Genie CCTV Limited ZW49IR night vision camera with WDR
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: ZW49IR
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 560
Additional info:
Genie's ZW49IR has motion detection, external control rings for easy focus and distance adjustment. It has up to 30 meters illumination range and selectable sunshield and heater.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | ZW49IR |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 560 Specialist Types: Infrared Sensitivity lux: 0.04 Mount Type: Wall Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/50~1/120,000 sec S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal Zoom: Zoom Video Output: 1.0Vp-p ~ 75 Ohms |
|
| Electrical Specifications | Voltage: DC 12V / AC 24V |
| Physical Specifications |
Dimension mm: 88 x 115 x 245 Weight g: 1600 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Protection: IP66 Operating Humidity %: 30 ~ 90 |
| Additional info |
Genie's ZW49IR has motion detection, external control rings for easy focus and distance adjustment. It has up to 30 meters illumination range and selectable sunshield and heater. |
