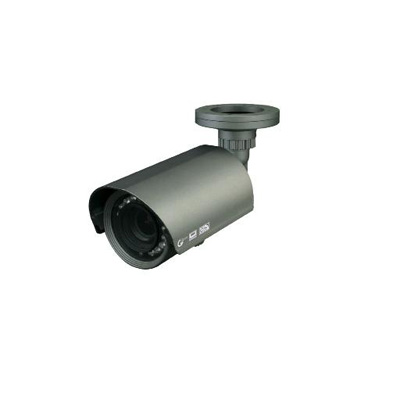

ZB2812IR Intus bullet style camera
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: ZB2812IR
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 600
Additional info:
ZB2812IR from Genie CCTV Limited has external control rings for easy focus and distance adjustment. It also has mechanical IR cut-filter.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | ZB2812IR |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 600 Specialist Types: Infrared Sensitivity lux: 0.00006 Motion Activated: MotionActivated Mount Type: wall, ceiling Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/50~1/120,000 sec S/ N (Signal/ Noise) Ratio dB: >52 Synchronisation: Internal Zoom: Zoom Video Output: 1.0Vp-p~75 Ohms |
|
| Electrical Specifications | Voltage: 12 V DC |
| Physical Specifications |
Dimension mm: 70 x 90 x188 Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Protection: IP66 Operating Humidity %: 95 |
| Additional info |
ZB2812IR from Genie CCTV Limited has external control rings for easy focus and distance adjustment. It also has mechanical IR cut-filter. |
