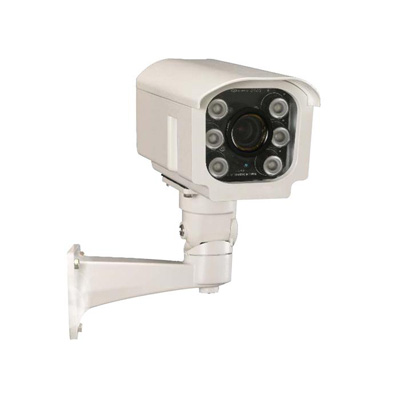

Genie CCTV Limited TPC-8389/240 all-in-one true day / night camera
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: TPC-8389/240
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 560
Additional info:
TPC-8389/240 from Genie CCTV has a die-cast aluminium construction, as well as mechanical IR-cut filter. It also has an integral heater and blower to prevent moisture on glass window.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | TPC-8389/240 |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 560 Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0.001 Focal Length mm: 3 ~ 8.5 Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: >50 Signal Mode: PAL Video Output: 1V p-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: AC 90 ~ 240V Power Consumption: 800mA |
| Physical Specifications | Dimension mm: 120 x 117 x 215 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +50 Protection: IP66 Operating Humidity %: 30~90 |
| Additional info |
TPC-8389/240 from Genie CCTV has a die-cast aluminium construction, as well as mechanical IR-cut filter. It also has an integral heater and blower to prevent moisture on glass window. |
| Download PDF version | |
