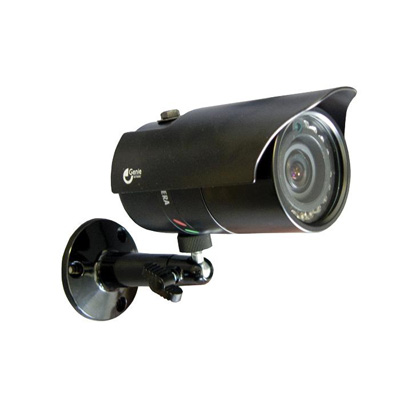

Genie CCTV Limited NB309IR IR external colour bullet camera
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: NB309IR
- Chip Inch Size: 1/3 inch
- Colour Type: Colour
- Resolution: 420 resolution
Additional info:
NB309IR from Genie is a simple IP IR bullet camera with 15 metres IR illumination. It also automatically adjusts image quality by network bandwidth.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | NB309IR |
|
Chip Inch Size: 1/3 inch Colour Type: Colour Resolution: 420 resolution Digital (DSP): Digital Specialist Type: Infrared Sensitivity Lux: 0.5 Auto Iris: AI Direct Drive: DD Motion Activated: MotionActivated Focal Length mm: 3 ~ 9 Picture Elements HxV: 420 x 576 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: >48 Synchronisation: Internal Signal Mode: PAL / NTSC Y/ C (Video Output): 1 Vpp 75 Ohm Compression Type: MPEG-4 |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.8 W |
| Network Properties |
Interface: Ethernet 10/100 Base-T / 100 Base TX Auto MDIX RJ- Network Protocols: IPv4 / HTTP /TCP / ICNP / RTSP / RTP / UDP / IGMP Software: Genie View Software Supports Web Viewing and Archiving |
| Physical Specifications |
Weight g: 460 Dimensions mm: 73 x 134 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 Protection: IP66 Operating Humidity %: 30 ~ 80 |
| System Requirements |
Operating System: Microsoft Windows XP SP2 or Above Framework 2.0 Hardware and System related properties: Pentium 4CPU 1.0 GHz or Higher DRAM 512 MB or Higher |
| Additional info |
NB309IR from Genie is a simple IP IR bullet camera with 15 metres IR illumination. It also automatically adjusts image quality by network bandwidth. |
