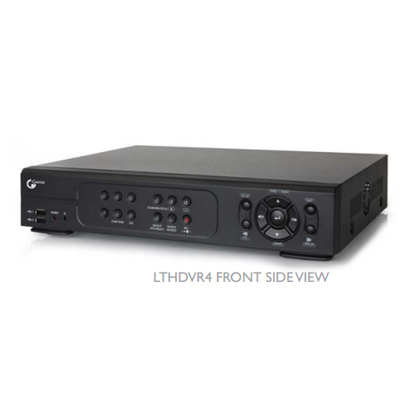

Genie CCTV Limited LTHDVR4/2 - 4 channel pentaplex digital video recorder
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: LTHDVR4/2
- Channels: 4 channels
- Recording Mode: Real time / Timelapse recording
- Monitor Outputs: 1
Additional info:
4 Channel HD-SDI Pentaplex Recorder. H.264 Recording Compression. Simultaneous Live Monitoring & Playback on Single Screen.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | LTHDVR4/2 |
|
Channels: 4 channels Recording Mode: Real time / Timelapse recording Monitor Outputs: 1 Inbuilt Multiplexer: InbuiltMultiplexer Multiplexer Type: Pentaplex Alarm I/O: 4 in, 1 out Storage Capacity GB: 6,000 GB storage Image per second (IPS): 30 fps fps storage rate Compression Type: H.264 Resolution: 1920 x 1080 resolution External Storage: USB Recording System: HDD Network Type: Static IP, DHCP, DDNS |
|
| Physical Specifications |
Dimensions mm: 350 x 70 x 260 Weight kg: 4 |
| Electrical Specifications | Voltage: 12 V DC |
| Environmental Specifications |
Operating Temp oC: 0 ~ 45 Operating Humidity %: 5 ~ 85 |
| Additional info | 4 Channel HD-SDI Pentaplex Recorder. H.264 Recording Compression. Simultaneous Live Monitoring & Playback on Single Screen. |
