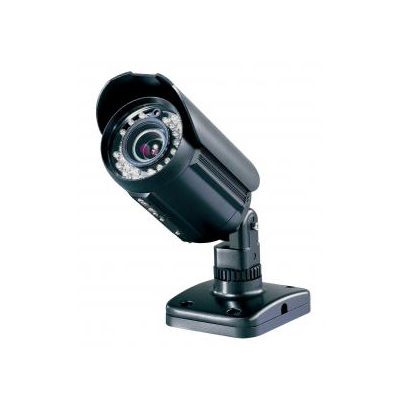

Genie CCTV Limited HDB201IR true day / night full HD-SDI megapixel bullet style IR camera
Technical Specification
Features:
- Make: Genie CCTV Limited
- Model code: HDB201IR
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 1920 x 1080
Additional info:
Broadcst style transmission over coaxial cable (no networking required). TDN 2.1MP HD-SDI IR Bullet Camera 3-10mm Lens.
Read more| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | HDB201IR |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 1920 x 1080 HD: HD Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Motion Activated: MotionActivated Focal Length mm: 3 ~ 10 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/25 ~ 1/50,000 S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal Signal Mode: NTSC / PAL Video Output: 1 x HD-SDI SMPTE 292M / 75? BNC |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 630 mA |
| Physical Specifications |
Dimension mm: 90 x 131 x 246 Weight g: 1,300 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: IP66 Operating Humidity %: 30 ~ 80 |
| Additional info | Broadcst style transmission over coaxial cable (no networking required). TDN 2.1MP HD-SDI IR Bullet Camera 3-10mm Lens. |
