New all in one 4CH DVR LCD monitor
Product Profile

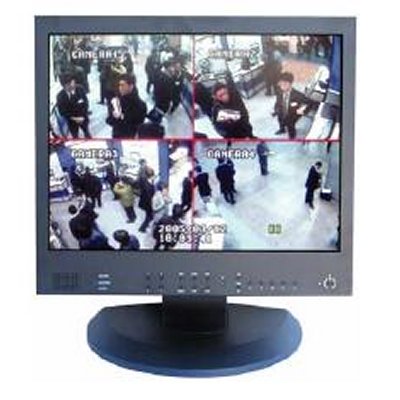

Genie CCTV has launched its new CLM-154 15 inch (38cm) TFT LCD monitor with built-in 4 channel triplex DVR.
Read more
- The CLM-154 can record, view control, playback, store and transmit pictures from up to 4 cameras simultaneously.
- It can be used as a single stand-alone system or networked as part of a larger video surveillance system.
- 250GB hard disk capacity is standard, with a larger HDD as an option.
- It uses high performance MPEG4 compression technology giving broadcast quality TV imaging.
- Can store up to 7 days of video recording in real time at a resolution of 704 x 288 at 50fps.
- Suitable for a wide range of applications.
- Wireless remote control operation if required.
- Very easy to install and configure.
- Features include: RJ45 or BNC video camera input; P/T/Z control; continuous, motion detection and sensor activated recording modes; 1, 4-channel or auto switching modes; extensive alarm handling.
Technical Specification
| Make | Genie CCTV Limited |
|---|---|
| Manufacturer | Genie Access Ltd. |
| Category | IP Cameras products |
| Model code | CLM-154 |
|
Channels: 4 channels Recording Mode: Real time / Timelapse / Event recording Monitor Outputs: 4 Inbuilt Multiplexer: Multiplexer Multiplexer Type: Triplex Storage Capacity GB: 250 GB storage Image per second (IPS): 100 fps storage rate Compression Type: MPEG4 Resolution: 704 x 576 resolution Signal Mode: PAL/NTSC Recording System: HDD Mount type: 4 in, 4 out Network Type: 10/100 Base-T Ethernet NIC IP Ready: PTZ |
|
| Physical Specifications |
Dimensions mm: 350 x 315 x 65 Weight kg: 8.5 kg |
| Electrical Specifications | Voltage: 12 |
| Environmental Specifications |
Operating Temp oC: 5 ~ 40 Operating Humidity %: 20 ~ 80% |
| Additional info | CLM-154 inclued a 15 inch (38cm) TFT LCD monitor with built-in 4 channel triplex DVR. |
