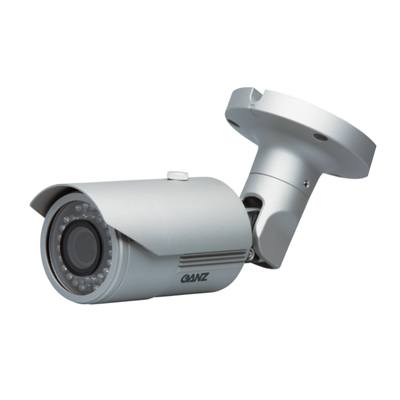

Ganz ZN-B5DMP58HE Outdoor Bullet Camera
Technical Specification
Features:
- Make: Ganz
- Model code: ZN-B5DMP58HE
- Chip Inch Size: 1/2.8 inch
- Colour Type: True Day / Night
- Resolution: 3 MP resolution
Additional info:
1/2.8” Sony ExmoR CMOS Sensor True WDR and True Day/Night Performance C/CS Mount selectable Compatible with Computar ® Megapixel Lenses ONVIF Profile S Compliant Dual-Streaming IP Video - H.264 and MJPEG Compression
Read more| Make | Ganz |
|---|---|
| Manufacturer | CBC (Europe) Ltd |
| Category | IP Cameras products |
| Model code | ZN-B5DMP58HE |
|
Chip Inch Size: 1/2.8 inch Colour Type: True Day / Night Resolution: 3 MP resolution Auto Iris: 1 Focal Length mm: 3 ~ 10.5 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/25(30)~1/5000 S/ N (Signal/ Noise) Ratio dB: 48 Zoom: 1 Compression Type: H.264, MJPEG : Image quality: 100 Steps(Q value) |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 12.9W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10BASE-T, 100BASE-TX, RJ45 Network Protocols: IPv4, HTTP, SMTP, UPnP, DNS, RTSP, DDNS, RTP, TCP, UDP, RTCP, DHCP, ARP, FTP, IGMP, ICMP, NTP |
| Physical Specifications |
Dimensions mm: ø83 x 290 Weight g: 1440 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Operating Humidity %: <90 |
| Additional info |
|
| Download PDF version | |
