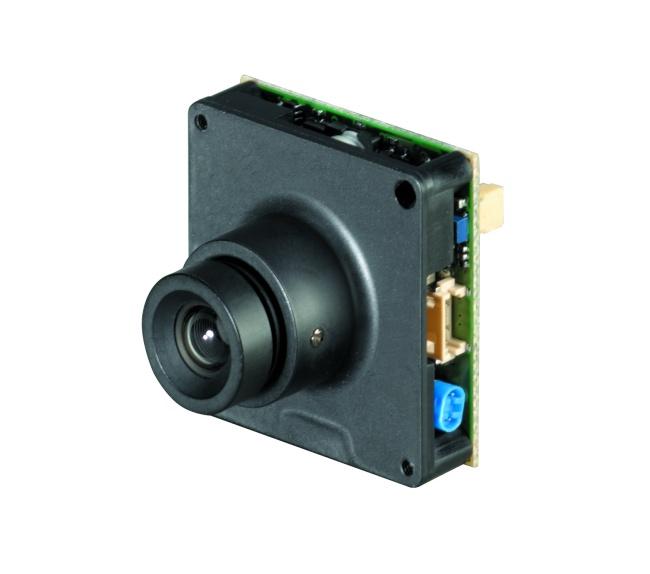

Ganz MMH212 is a high resolution colour and B&W board camera with 580 TVL
Technical Specification
Features:
- Make: Ganz
- Model code: MMH212
- Chip Inch Size ": 1/4 inch
- Colour Type: Monochrome
- Resolution TVL: 580
Additional info:
Ganz MMH212 is a high resolution colour and B&W board camera with 580 TVL.
Read more| Make | Ganz |
|---|---|
| Manufacturer | CBC (Europe) Ltd |
| Category | IP Cameras products |
| Model code | MMH212 |
|
Chip Inch Size ": 1/4 inch Colour Type: Monochrome Resolution TVL: 580 Direct Drive: DD Sensitivity lux: 0.2 Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Gamma Correction: 0.45 S/ N (Signal/ Noise) Ratio dB: 50 Signal Mode: CCIR Video Output: 1.0 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.2 W |
| Physical Specifications |
Dimension mm: 32 x 32 x 1 Weight g: 10 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 0 ~ 80 |
| Additional info | Ganz MMH212 is a high resolution colour and B&W board camera with 580 TVL. |
