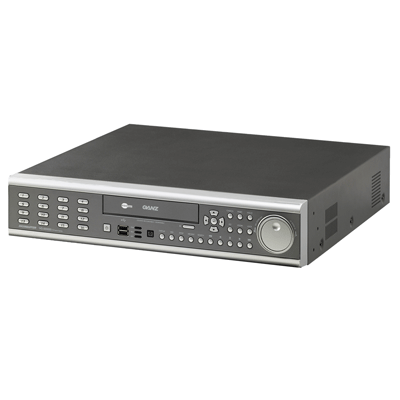

Ganz DR8H-DVD/1TB digital video recorder with efficient H.264 compression
Technical Specification
Features:
- Make: Ganz
- Model code: DR8H-DVD/1TB
- Channels: 8 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Inbuilt Multiplexer: InbuiltMultiplexer
| Make | Ganz |
|---|---|
| Manufacturer | CBC (Europe) Ltd |
| Category | IP Cameras products |
| Model code | DR8H-DVD/1TB |
|
Channels: 8 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Multiplexer Type: Pentaplex Alarm I/O: 8 in, 8 out Storage Capacity GB: 1024 GB storage Image per second (IPS): 200 fps fps storage rate Compression Type: H.264 Resolution: 704 x 576 resolution Signal Mode: PAL External Storage: CD, DVD, USB Audio Recording and Properties: 4 Line in (RCA) / 1 Line out (RCA) Recording System: HDD Mount type: 8 in Type of Multiplexer Functions: Simultaneous Live Record, Playback, Archive Network Type: RS-485 |
|
| Physical Specifications |
Dimensions mm: 429.26 x 459.74 x 88.9 Weight kg: 7.3 |
| Electrical Specifications | Voltage: 100 ~ 220 V AC |
| Environmental Specifications |
Operating Temp oC: -10 ~ +40 Operating Humidity %: 10 ~ 90 |
