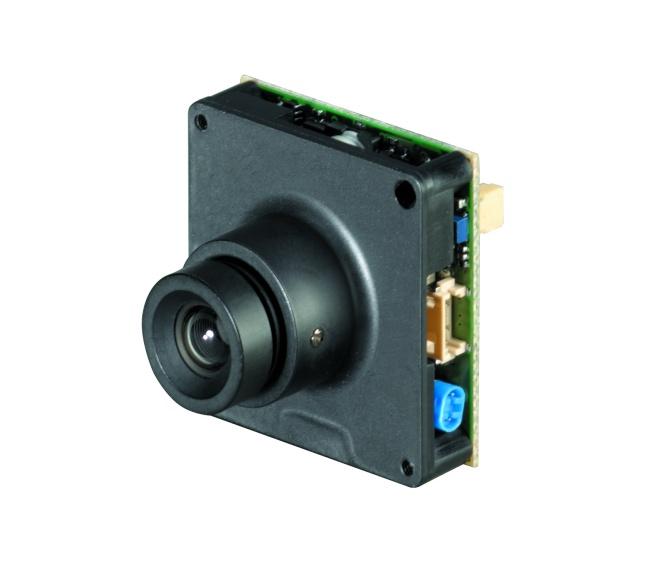

Ganz CM212 is a standard resolution colour and B&W board camera with 330 TVL
Technical Specification
Features:
- Make: Ganz
- Model code: CM212
- Chip Inch Size ": 1/4 inch
- Colour Type: Colour
- Resolution TVL: 330
Additional info:
MM and CM series board cameras are component level B&W or colour cameras without a casing or housing. Due to their extremely small size, they have many useful applications from video door entry systems to covert surveillance with pinhole lenses.
Read more| Make | Ganz |
|---|---|
| Manufacturer | CBC (Europe) Ltd |
| Category | IP Cameras products |
| Model code | CM212 |
|
Chip Inch Size ": 1/4 inch Colour Type: Colour Resolution TVL: 330 Direct Drive: DD Sensitivity lux: 1.0 Picture Elements HxV: 500 x 582 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Gamma Correction: 0.45 S/ N (Signal/ Noise) Ratio dB: 50 Signal Mode: PAL Video Output: 1.0 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.5 W |
| Physical Specifications |
Dimension mm: 32 x 32 x 1 Weight g: 10 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 0 ~ 80 |
| Additional info |
MM and CM series board cameras are component level B&W or colour cameras without a casing or housing. Due to their extremely small size, they have many useful applications from video door entry systems to covert surveillance with pinhole lenses. |
