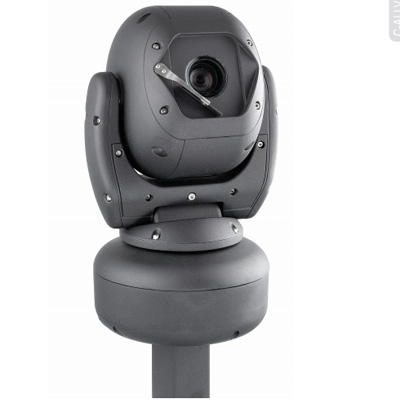

Ganz C-ADN3X36PT-B C-AllView high speed rugged Pan / Tilt camera with flat toughened glass window
Technical Specification
Features:
- Make: Ganz
- Model code: C-ADN3X36PT-B
- Chip Inch Size ": 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 530
Additional info:
The C-AllView day/night high speed PTZ Camera is a continuous rotation "ruggedised" PTZ camera, sealed to IP67 and designed to be installed in harsh and challenging environments or areas where the camera unit may be liable to experience physical abuse. Housing colour black. 36x optical zoom. Vandalism-proof, incl. wiper unit, bracket and external.
Read more| Make | Ganz |
|---|---|
| Manufacturer | CBC (Europe) Ltd |
| Category | IP Cameras products |
| Model code | C-ADN3X36PT-B |
|
Chip Inch Size ": 1/4 inch Colour Type: Colour / Monochrome Resolution TVL: 530 Specialist Types: Pan Tilt Sensitivity lux: 0.7 lux colour, 0.07 lux mono @ F1.4 Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal, Line-lock Signal Mode: PAL, NTSC Zoom: Zoom Video Output: 1.0 Vpp |
|
| Electrical Specifications |
Voltage: 20 ~ 36 V DC Power Consumption: 30 W |
| Physical Specifications |
Dimension mm: 220 x 368 Weight g: 7 KG |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Protection: IP67 Operating Humidity %: 90 |
| Additional info | The C-AllView day/night high speed PTZ Camera is a continuous rotation "ruggedised" PTZ camera, sealed to IP67 and designed to be installed in harsh and challenging environments or areas where the camera unit may be liable to experience physical abuse. Housing colour black. 36x optical zoom. Vandalism-proof, incl. wiper unit, bracket and external. |
| Download PDF version | |
