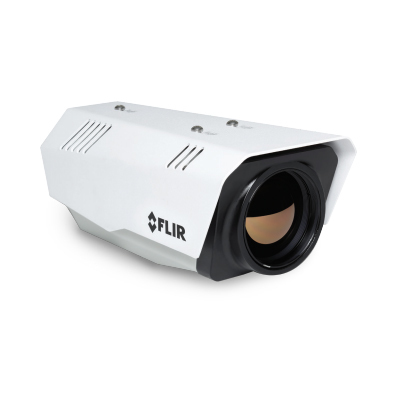

FLIR Systems FC-324 ID - 13 MM, NTSC 30HZ thermal analytics camera
Technical Specification
- Make: FLIR Systems
- Model code: FC-324 ID - 13 MM, NTSC 30HZ
- Series: FC-ID Series
- Resolution: 320 x 240 resolution
- Digital (DSP): 1
The Elara™ FC-Series ID is one of FLIR’s premium thermal security cameras for perimeter protection. The Elara FC-Series ID includes onboard video analytics capable of classifying human or vehicular intrusions, resulting in fewer false alarms. The Elara FC-Series ID also offers a wide range of high-performance lenses and multiple resolutions, giving greater flexibility in tailoring security systems to specific site conditions.
Read more| Make | FLIR Systems |
|---|---|
| Manufacturer | FLIR Systems |
| Category | IP Cameras products |
| Model code | FC-324 ID - 13 MM, NTSC 30HZ |
| Series | FC-ID Series |
|
Resolution: 320 x 240 resolution Digital (DSP): 1 Specialist Type: Thermal Auto Iris: 1 Direct Drive: 1 Focal Length mm: 13 Picture Elements HxV: 320 x 240 Signal Mode: NTSC Y/ C (Video Output): 1Vp-p (PAL or NTSC), 1 x BNC 75Ω Compression Type: MJPEG, MPEG4 |
|
| Electrical Specifications |
Voltage: 5 V DC Power Consumption: 5.5 W |
| Network Properties | Network Protocols: IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTCP, TCP, UDP, ICMP, IGMP, DHCP, ARP, FTP, RTP/RTSP, Unicast/ Multicast, TCP/IP, HTTP, IEEE 802.1X |
| Physical Specifications |
Weight g: 1,800 Dimensions mm: 282 x 129 x 115 |
| Environmental Specifications |
Protection: IP66, IP67 Operating Temperature oC: -50 ~ 70 C (-58 ~ 158 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
The Elara™ FC-Series ID is one of FLIR’s premium thermal security cameras for perimeter protection. The Elara FC-Series ID includes onboard video analytics capable of classifying human or vehicular intrusions, resulting in fewer false alarms. The Elara FC-Series ID also offers a wide range of high-performance lenses and multiple resolutions, giving greater flexibility in tailoring security systems to specific site conditions. |
