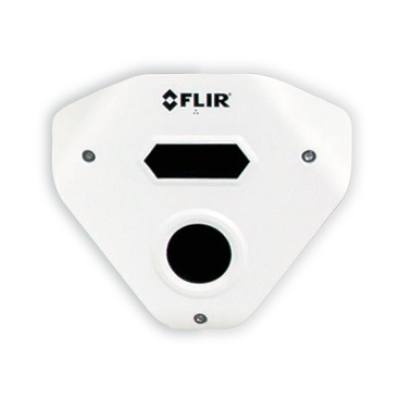

FLIR Systems Ariel QXGA 3MP Corner Camera (2.1mm)
Technical Specification
- Make: FLIR Systems
- Model code: Ariel QXGA
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 3 MP resolution
The Ariel™ 3MP Corner Camera features a unique corner-shape form factor and extended field of view lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, the Ariel 3 MP Corner camera is an ideal solution for any deployment that requires full coverage from a single camera — including correctional institutions, healthcare facilities, building lobbies and elevators.
Read more| Make | FLIR Systems |
|---|---|
| Manufacturer | FLIR Systems |
| Category | IP Cameras products |
| Model code | Ariel QXGA |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 3 MP resolution Digital (DSP): 1 Sensitivity Lux: 0 ~ 0.02 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 2.1 Mount Type: Corner Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/7.5(6.25)~1/60(50) / min. S/ N (Signal/ Noise) Ratio dB: 50 Signal Mode: PAL, NTSC Compression Type: Fully compliant multi-stream H.264 main/high profile + MJPEG |
|
| Electrical Specifications |
Voltage: PoE Power Consumption: 3.4W / 9.4W with heater and IR |
| Network Properties |
Image Frame Rate: 25 ~ 30 fps Interface: 10/100, auto sensing, half / full duplex (RJ45) Network Protocols: TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Physical Specifications |
Weight g: 1210 Dimensions mm: 184 x 179 x 59 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Operating Humidity %: 90 |
| Additional info |
The Ariel™ 3MP Corner Camera features a unique corner-shape form factor and extended field of view lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, the Ariel 3 MP Corner camera is an ideal solution for any deployment that requires full coverage from a single camera — including correctional institutions, healthcare facilities, building lobbies and elevators. |
