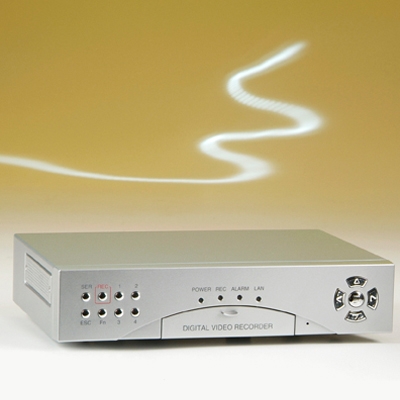

Ernitec EMRX 1080-4 Digital video recorder (DVR)
Technical Specification
Features:
- Make: Ernitec
- Model code: EMRX 1080-4
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
- Monitor Outputs: 1
Additional info:
Designed for mobile applications. No cooling fans required. Dustproof filter. Shock test (operation): 980 m/s2 (100G) @ 11ms, half-sine wave. 2450m/s2 (250G) @ 2ms, half-sine wave. Vibration test (operation): 1mm p-p @ 5 ~ +22 Hz; 9.8m/s2 (1G) @ 22 ~ +500 Hz.
Read more| Make | Ernitec |
|---|---|
| Manufacturer | Ernitec A/S |
| Category | IP Cameras products |
| Model code | EMRX 1080-4 |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Monitor Outputs: 1 Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 4 in, 2 out Multiplexer Type: Triplex Storage Capacity GB: 80 GB storage Image per second (IPS): 25 (PAL)/30 (NTSC) fps storage rate Compression Type: MJPEG Resolution: 720 x 288 resolution Signal Mode: PAL External Storage: USB 2.0 or CF/SD card Recording System: HDD Audio Recording and Properties: 1 in, 1 out Colour Type: Colour / monochrome Mount type: 4 in, 1 out Type of Multiplexer Functions: Playback, viewing, archiving Network Type: Ethernet 100Base-T, RJ-45 |
|
| Physical Specifications |
Dimensions mm: 210 x 145 x 43 Weight kg: 1 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 6 W |
| Environmental Specifications | Operating Temp oC: -20 ~ +65 |
| Additional info | Designed for mobile applications. No cooling fans required. Dustproof filter. Shock test (operation): 980 m/s2 (100G) @ 11ms, half-sine wave. 2450m/s2 (250G) @ 2ms, half-sine wave. Vibration test (operation): 1mm p-p @ 5 ~ +22 Hz; 9.8m/s2 (1G) @ 22 ~ +500 Hz. |
