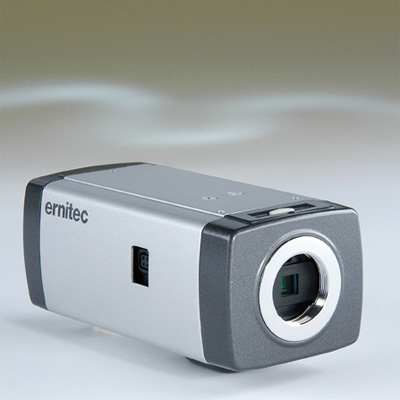

Ernitec ECB231-DP-M / -D CCTV camera
Technical Specification
Features:
- Make: Ernitec
- Model code: ECB231-DP-M / -D
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 520
Additional info:
Ernitec ECB231-DP-M / -D is a1/3" day/night CCTV camera with 520 TVL.
Read more| Make | Ernitec |
|---|---|
| Manufacturer | Ernitec A/S |
| Category | IP Cameras products |
| Model code | ECB231-DP-M / -D |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 520 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.03 Direct Drive: DD Lens Mount: CS mount Picture Elements HxV: 756 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Gamma Correction: 0.45 Electronic Shutter range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 50 Synchronisation: Internal Signal Mode: PAL Video Output: 1 Vp-p |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 3.5 W |
| Physical Specifications |
Dimension mm: 48 x 46 x 115 Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 0 ~ 90 |
| Additional info | Ernitec ECB231-DP-M / -D is a1/3" day/night CCTV camera with 520 TVL. |
