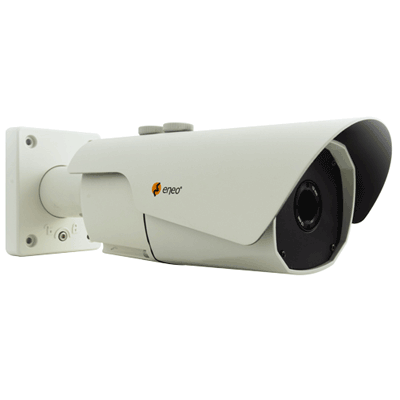

Eneo PTB-1225F09 Candid thermal imaging network camera
Technical Specification
Features:
- Make: eneo
- Model code: PTB-1225F09
- Series: Candid thermal imaging cameras
- Resolution: 640 x 512 resolution
- Specialist Type: Thermal
Additional info:
Further protocols; DHCP, NTP, UPnP, Telnet, FTP. The new thermal imaging cameras in the Candid series give users the triple advantage of maintenance-free thermal imaging technology, multifunctional Candid design and complete system flexibility due to analog and IP connectivity. Each model also has a USB port. And just the same as all eneo IP cameras, Candid thermal imaging cameras are fully compatible with Aimetis software products. Candid thermal imaging cameras come with a three-year warranty. And because they are equipped with uncooled thermal imaging modules, they can work maintenance-free for years.
Read more| Make | eneo |
|---|---|
| Manufacturer | eneo |
| Category | IP Cameras products |
| Model code | PTB-1225F09 |
| Series | Candid thermal imaging cameras |
|
Resolution: 640 x 512 resolution Specialist Type: Thermal Focal Length mm: 9 Mount Type: Wall Y/ C (Video Output): Composite (CVBS) Compression Type: H.264, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC / PoE Power Consumption: 12 W |
| Network Properties |
Image Frame Rate: 25 Control: RS-422, USB, Ethernet Interface: 10Base-T/100-Base-TX, RJ-45 Network Protocols: HTTP,TCP,UTP,ARP,IPv4,ICMP,RTP,RTSP.PPPoE,SMTP Software: Remote software |
| Physical Specifications | Weight g: 1400 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -35 ~ +50 |
| System Requirements | Web Browser: MS IE 7.0 or higher,Firefox |
| Additional info | Further protocols; DHCP, NTP, UPnP, Telnet, FTP. The new thermal imaging cameras in the Candid series give users the triple advantage of maintenance-free thermal imaging technology, multifunctional Candid design and complete system flexibility due to analog and IP connectivity. Each model also has a USB port. And just the same as all eneo IP cameras, Candid thermal imaging cameras are fully compatible with Aimetis software products. Candid thermal imaging cameras come with a three-year warranty. And because they are equipped with uncooled thermal imaging modules, they can work maintenance-free for years. |
