See very far: eneo goes thermal

Product Profile

Thick fog? Complete darkness? Long distances? No problem. The new Candid thermal imaging cameras always give you a clear picture of the situation with detection ranges up to 3,800 metres. The camera includes Candid ease of installation and application possibilities beyond classic video surveillance.

The new Candid thermal imaging cameras are offered in different versions with focal lengths of 5 mm, 7,5 mm, 9 mm, 13 mm, 19 mm, 25 mm and 35 mm. A total of 32 different models are available. Their sturdy housing (IP67) ensures they are ideal for use in harsh environments with temperatures from -35 to 50°C. And detection ranges from 330 to 3,800 metres make them specialists for area surveillance and perimeter protection. This allows them to identify potential intruders from a long distance, even in fog, rain, snow and smoke – regardless of the ambient light.

The new thermal imaging cameras in the Candid series give users the triple advantage of maintenance-free thermal imaging technology, multifunctional Candid design and complete system flexibility due to analogue and IP connectivity. Each model also has a USB port. And just the same as all eneo IP cameras, Candid thermal imaging cameras are fully compatible with Aimetis software products.

Candid thermal imaging cameras come with a three-year warranty. And because they are equipped with uncooled thermal imaging modules, they can work maintenance-free for years.

Read more

Technical Specification

Make eneo
Manufacturer eneo
Category IP Cameras products
Model code PTB-1125F19
Series Candid thermal imaging cameras
Resolution: 336 x 256 resolution
Specialist Type: Thermal
Motion Activated: MotionActivated
Focal Length mm: 19
Mount Type: Wall
Y/ C (Video Output): Composite (CVBS)
Compression Type: H.264, M-JPEG
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE
Power Consumption: 12 W
Network Properties Image Frame Rate: 25
Control: RS-422, USB, Ethernet
Interface: 10Base-T/100-Base-TX, RJ-45
Network Protocols: HTTP,TCP,UTP,ARP,IPv4,ICMP,RTP,RTSP.PPPoE,SMTP
Software: Remote software
Physical Specifications Weight g: 1400
Environmental Specifications Protection: IP67
Operating Temperature oC: -35 ~ +50
System Requirements Web Browser: MS IE 7.0 or higher,Firefox
Additional info

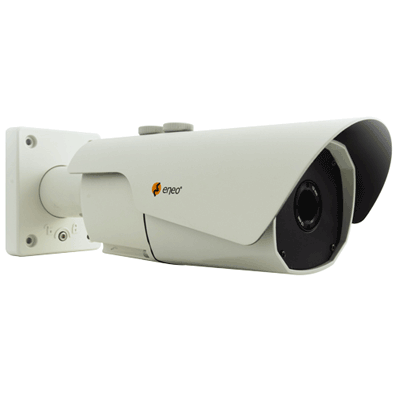

Further protocols: DHCP, NTP, UPnP, Telnet, FTP.  The eneo PTB-1125F19 is a thermal camera with exclusive design for indoor and outdoor applications, bullet housing for ceiling and wall mounting , easy installation, and flexible power supply.
