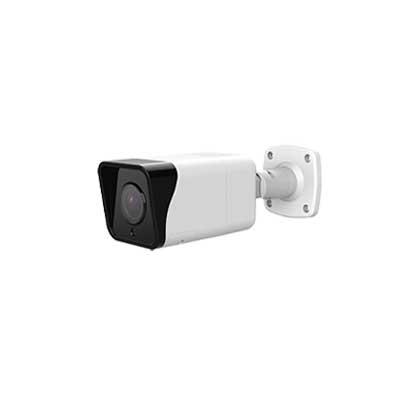

Eagle Eye Networks DB11 4MP indoor/outdoor IR bullet IP camera
Technical Specification
Features:
- Make: Eagle Eye Networks
- Model code: DB11
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 4 MP resolution
Additional info:
Ultra-lowlight 4MP camera with an IP67 environmental rating Indoor/outdoor waterproof bullet Motorised lens 2.7 - 13.5mm Wide Dynamic Range Night Vision Smart IR, IR LEDs, 40m range Triple RTSP Streams Comes pre-configured to securely operate with the Eagle Eye Cloud Security VMS and Eagle Eye CameraManager Suitable for modest outdoor areas or large indoor areas: Small Parking lots, fields, parking garages, work yards, back yards, outdoor entrances, warehouses
Read more| Make | Eagle Eye Networks |
|---|---|
| Manufacturer | Eagle Eye Networks, Inc. |
| Category | IP Cameras products |
| Model code | DB11 |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 4 MP resolution Digital (DSP): 1 Specialist Type: Infrared Sensitivity Lux: 0 ~ 0.01 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 2.7 ~ 13.5 Wide Dynamic Range: 1 Picture Elements HxV: 2592 x 1520 Back Light Compensation: 1 Electronic Shutter Range: 1/5s ~ 1/20000s Y/ C (Video Output): Built-in CVBS output Compression Type: H.265, H.264, and MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 3.5 ~ 8 W |
| Network Properties |
Image Frame Rate: 25 fps / 30 fps Inclusion DVR/ Web Server: 1 Interface: RJ-45 Female 10/100 Base-T |
| Physical Specifications |
Weight g: 700 Dimensions mm: 232 x 75 x 80 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -30 ~ 50 C (-22 ~ 122 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
