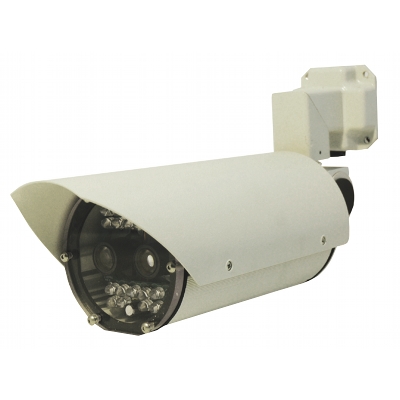

Dedicated Micros DM/CMVU-PR1850D-Overview

Product Profile

Dedicated Micros HyperSense technology has been used in our range of Automatic Number Plate Recognition (ANPR) Optimised cameras to capture and record vehicle licence plates.

Available in both analogue and IP models, Dedicated Micros unique HyperSense technology removes ambient light from the scene leaving only the objects that strongly reflect the IR light emitted by the integrated invisible IR LED flash to be displayed. Eliminating glare from vehicle headlights and providing a more distinct image, Dedicated Micros ANPR optimised cameras speed up ANPR computation and increase read accuracy.

Ideal for deployment in a range of applications including Petrol Forecourt monitoring and Car Park Barrier control, the range includes dedicated ANPR cameras, designed to capture the plate detail of passing vehicles, and combined ANPR / Overview cameras, to associate colour images of the vehicles with their number plates.

Benefits
  • Identify and record the license plate details of all vehicles coming into, and/or leaving, a particular area irrespective of the lighting conditions
  • Ambient light removal means that even headlight glare will not degrade the image
  • Ambient scene removal extracts unnecessary detail from the image, speeding up plate finding and improving accuracy
  • Overview camera provides high-resolution image for vehicle association
  • IP Options preloaded with ANPR software allowing analytics to be processed at the camera
  • Include ANPR into your existing NetVu Connected CCTV installation without the need to redesign or re-install the system
  • Combined with associated signage ANPR provides a visible deterrent to would-be offenders, for example drive-offs
Read more

Technical Specification

Make Dedicated Micros
Manufacturer Dedicated Micros
Category IP Cameras products
Model code DM/CMVU-PR1850D-Overview
Series ANPR Optimised Cameras
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome
Resolution: 540 resolution
Specialist Type: Infrared
Sensitivity Lux: 0.15
Auto Iris: AI
Direct Drive: DD
Focal Length mm: 18 ~ 50
Picture Elements HxV: 752 x 582
Electronic Shutter Range: 1/1,000
Y/ C (Video Output): 1 Vp-p, 75 Ohms
Electrical Specifications Voltage: 18 V DC / 24 V AC / PoE
Power Consumption: 14.5 W
Network Properties Image Frame Rate: 25 fps
Interface: RJ45 connector, 10/100 BaseT
Network Protocols: IP, TCP, UDP, TELNET, ICMP, HTTP, ARP
Physical Specifications Dimensions mm: 460 x 150 x 222
Environmental Specifications Operating Temperature oC: -10 ~ + 50
Protection: IP66
Additional info Moving IR cut filter. ANPR software included. Aluminium housing and sunshield included.
